精密曲軸沖床
專業從事鍛壓設備及自動化的研發、生產、銷售,并為客戶提供個性化、多樣化、系統化服務的高新技術型企業Quick navigation
|
標準裝置 Standard Accessories |
|
電動黃油潤滑裝置 Electrical drive lubrication system |
|
液壓過載保護裝置 Hydraulic over-load protector |
|
電動式滑塊調整裝置 Automatic slide adjust device |
|
主電機 Main motor
|
|
曲軸角度指示器 Crank angle counter |
|
裝模高度顯示器 Die height indicator |
|
滑塊及模具平衡裝置 Balance device |
|
凸輪控制器或旋轉編碼器 Cam controller or rotary encoder |
|
模具照明燈 Working light 二度落保護裝置 Against over-run safety device 觸摸屏系統 Touch screen 可編程控器系統 PLC 移動式雙手按鈕操作站 Mobile two-handed operation station |
|
誤送檢知接口 Mis-feeder check-out port |
|
空氣源接頭 Compressed air connector |
|
空氣吹料接頭 Set blowing connector |
|
主電機逆轉裝置 Main motor reversing device |
|
組合式干式摩擦離合器 Combined dry friction clutch |
|
防震墊腳 Adjusting shockproof pad |
|
標準裝置 Standard Accessories |
|
電動黃油潤滑裝置 Electrical drive lubrication system |
|
液壓過載保護裝置 Hydraulic over-load protector |
|
電動式滑塊調整裝置 Automatic slide adjust device |
|
主電機 Main motor
|
|
曲軸角度指示器 Crank angle counter |
|
裝模高度顯示器 Die height indicator |
|
滑塊及模具平衡裝置 Balance device |
|
凸輪控制器或旋轉編碼器 Cam controller or rotary encoder |
|
模具照明燈 Working light 二度落保護裝置 Against over-run safety device 觸摸屏系統 Touch screen 可編程控器系統 PLC 移動式雙手按鈕操作站 Mobile two-handed operation station |
|
誤送檢知接口 Mis-feeder check-out port |
|
空氣源接頭 Compressed air connector |
|
空氣吹料接頭 Set blowing connector |
|
主電機逆轉裝置 Main motor reversing device |
|
組合式干式摩擦離合器 Combined dry friction clutch |
|
防震墊腳 Adjusting shockproof pad
|

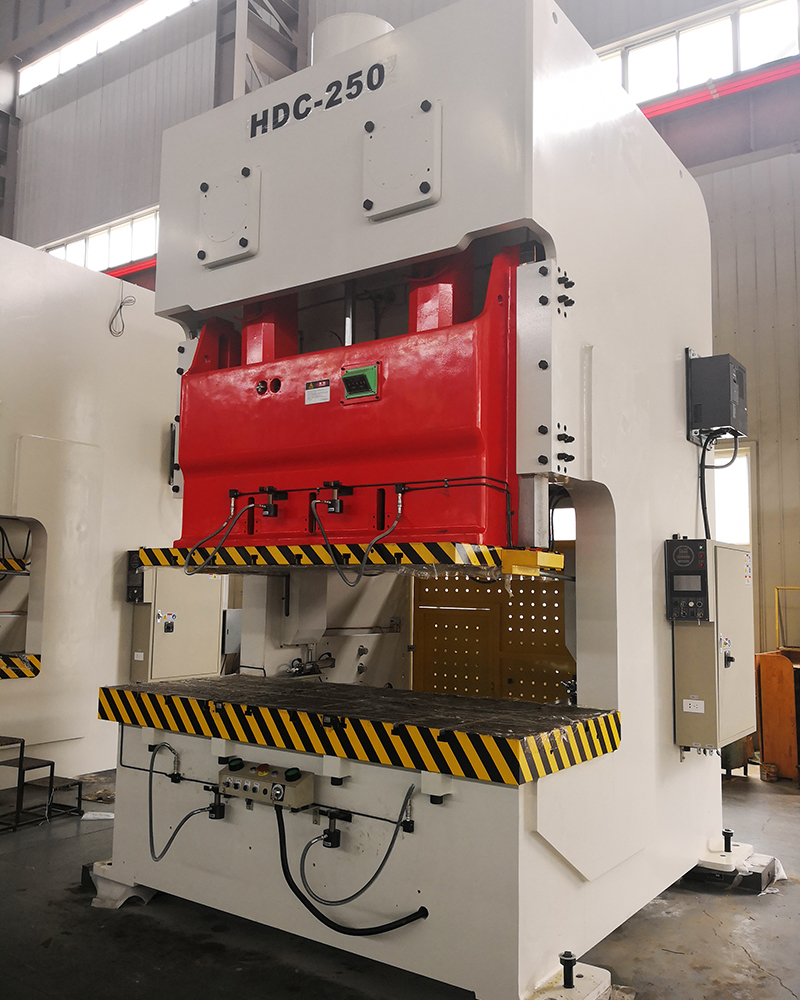

| 規格 Specification | HDC-110 | HDC-160 | HDC-200 | HDC-250 | HDC-315 | |||||
| 形式 Model | V | H | V | H | V | H | V | H | V | H |
| AA | 2000 | 2200 | 2620 | 3000 | 3010 | |||||
| AB | 1900 | 2080 | 2460 | 2800 | 2810 | |||||
| AC | 1360 | 1520 | 1820 | 2200 | 2210 | |||||
| AD | 1800 | 2000 | 2400 | 2700 | 2800 | |||||
| AE | 1510 | 1660 | 1990 | 2220 | 2230 | |||||
| AF | 1400 | 1600 | 1850 | 2100 | 2100 | |||||
| AG | 1780 | 1980 | 2320 | 2590 | 2600 | |||||
| BA | 1745 | 1940 | 2235 | 2545 | 2545 | |||||
| BB | 1295 | 1380 | 1885 | 2195 | 2195 | |||||
| BC | 650 | 760 | 840 | 900 | 900 | |||||
| BD | 330 | 385 | 425 | 455 | 455 | |||||
| BE | 500 | 550 | 650 | 700 | 700 | |||||
| HB | 830 | 990 | 1070 | 1100 | 1120 | |||||
| HC | 400 | 435 | 450 | 485 | 500 | 550 | 550 | 605 | 550 | 605 |
| HD | 180 | 110 | 200 | 130 | 250 | 150 | 280 | 170 | 280 | 170 |
| HE | 3059 | 3709 | 3849 | 4304 | 4689 | |||||
| ΦH | Φ35 | Φ47 | Φ54 | Φ54 | Φ54 | |||||
